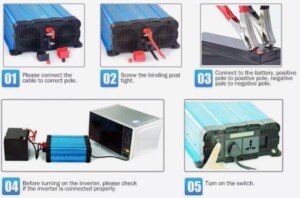

谨慎：
红色端子为正极。
黑色端子为负极点。请正确连接它们，否则保险丝会烧毁。
连接前，请确保逆变器已关闭。
| 12V/24V/48V | ||||||||||
| 直流电压 | ||||||||||
| 输出 | 交流电压 | 100V/110V/120V/220V/230V/240V | ||||||||
| 环境 | 额定功率 | 1200瓦 | 2000瓦 | 3000 瓦 | 4000 瓦 | 5000瓦 | 6000 瓦 | 7000瓦 | 8000 瓦 | |
| 浪涌功率 | Load 120~150%(3min.);4000W（3sec;resistive) | |||||||||
| 波形 | Pure Sine Wave(THD<3%) | |||||||||
| 频率 | 50Hz/60Hz ±0.05% | |||||||||
| 允许的功率因数 | COSθ-90°~COSθ+90° | |||||||||

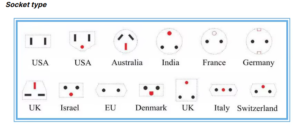

| 标准插座 | 美国/英国/弗兰奇/舒科/英国/澳大利亚/环球等可选 | |||||||||
| LED 指示灯 | 绿色表示开机，红色表示故障状态 | |||||||||
| USB 端口 | 5V 2.1安培 | |||||||||
| LCD 显示屏 | 电压、功率、保护状态（可选） | |||||||||
| 遥控器 | CRW80 / CR80 / CRD80 可选 | |||||||||
| 效率（Typ.） | 89%~93% | |||||||||
| 过载 | 关闭输出电压，重启恢复 | |||||||||
| 过温 | 关闭输出电压，温度下降后自动恢复 | |||||||||
| 输出短路 | 关闭输出电压，重启恢复 | |||||||||
| 接地故障 | 负载漏电时关闭 o/p | |||||||||
| 软启动 | 是的，3-5 秒 | |||||||||
| 工作温度 | 0~+50°C | |||||||||
| 工作湿度 | 20~90%RH non-condensing | |||||||||
| Storage Temp.&Humidity | -30 | |||||||||
