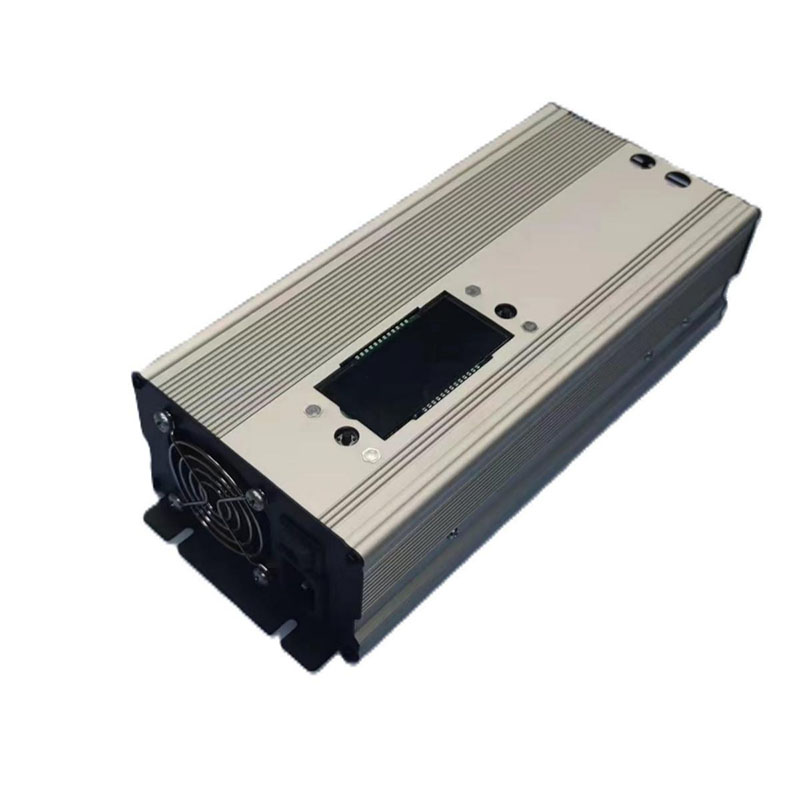

60A charger parameters

Lead-acid mode:  12V battery      24V battery
Charging voltage：15.5V Charging voltage：31V
Float charge voltage：14.6V Float charge voltage：29.2V

Lead-acid mode：
When the charging current is less than the set current, it will start floating charge and display 100%. After floating charge, it will automatically stop after 120 minutes and display “stop working”. Applicable to: ordinary open lead-acid batteries.

Lithium battery mode：12V battery      24V battery
Charging voltage：14.6V Charging voltage： 29.2V

Lithium battery mode：
No floating charge, no delay, the current automatically decreases to the minimum level after the battery protection board is protected.
Note: Can charge 4 or 8 series of lithium iron phosphate batteries

AGM model：12V battery      24V battery
Charging voltage：14.6V     Charging voltage：29.2V
Float charge voltage：13.7V Float charge voltage：27.4V

AGM model：
When the charging current is less than the set current, it will switch to floating charge and display 100%. After floating charge, it will automatically stop after 120 minutes and display “Stop working”.

Applies to：
AGM battery, conventional colloid battery, GEL battery, spiral battery, large-capacity UPS battery, start-stop battery, power maintenance-free battery.

power supply：12V battery      24V battery
Charging voltage：14.4V          Charging voltage： 28.8V

Power Mode：
No floating charge, no delay, and output in maximum current mode.

Fault indication：

‘E4’ overheat protection.

‘–’ The internal output fuse is blown.

Key functions：
Press the left button to select the mode;
The switch on the front panel is for selecting the 12V/24V battery position.
Press the button on the right to select the current, and press for 5 seconds to force start.
Note: It is strictly forbidden to connect the positive and negative poles of the output in reverse

Product size: length 28.5CM, width 120CM, height 7.5CM (Please forgive me for the slight deviations in the size parameters due to manual measurement)
Product weight: 1970g

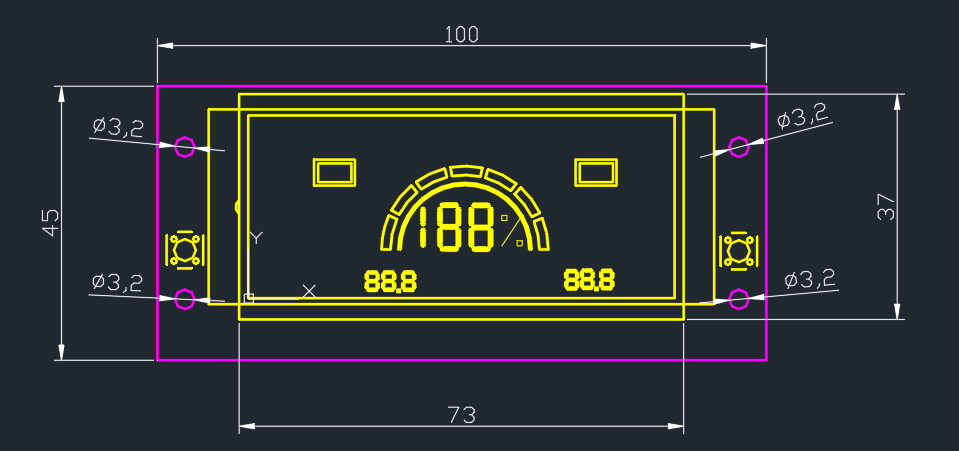

Display screen size opening:
