Advantage:

• Relocateable and Reusable
• Durable / Light weight
• Steel with Fire Rated A1 non-combustible rock wool / glass wool galvanized steel sandwich Panels
• High Thermal and Sound Insulation
• Customized / Collapsible
• Quick and Easy to Assembly: Two persons can finish assembling one standard unit in three hours
• Cost Saving: The flat packed units are delivered in bundles; up to 75% in transportation costs can be saved.
• Flexible Combination: Multiple buildings can be easily created by stacking and interlinking units together
• Easy to transport:Each flat packed unit includes ISO standard forklift pockets within the floor base.

+

Product Feature

• Structural design service life: 5 years
• Number of layers: ≤3 layers •Roofing situation: flat roof, built-in structural drainage •Live load on the ground: 2.0KN/㎡ •Live roof load: 0.5KN/㎡ •Wind load: 0.6KN/㎡ •Fire rating: non-flammable roof and wall materials •Seismic fortification intensity: level 4~6

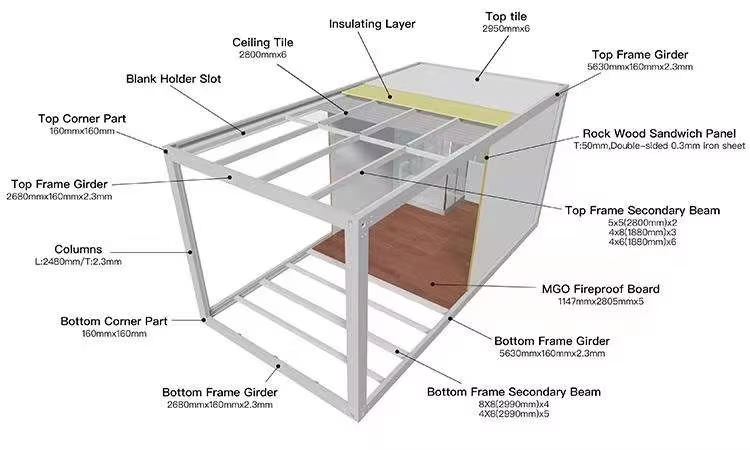

One unit standard container house structure material including as below:

• LxWxH: 6000x3000x2800mm or 8000*3000x2800mm max customized size
• One set integrated galvanized steel roof frame system & One set integrated galvanized steel ground frame system 15 or 17 sets

glass wool/rock wool galvanized color steel sandwich wall panel

• 8 sets galvanized steel technical solid corner fitting
• 1 set steel security door• 2 sets aluminium alloy sliding door
• 5 sets MGO floor board
• 2 sets LED lights
• Electricity system and wire
